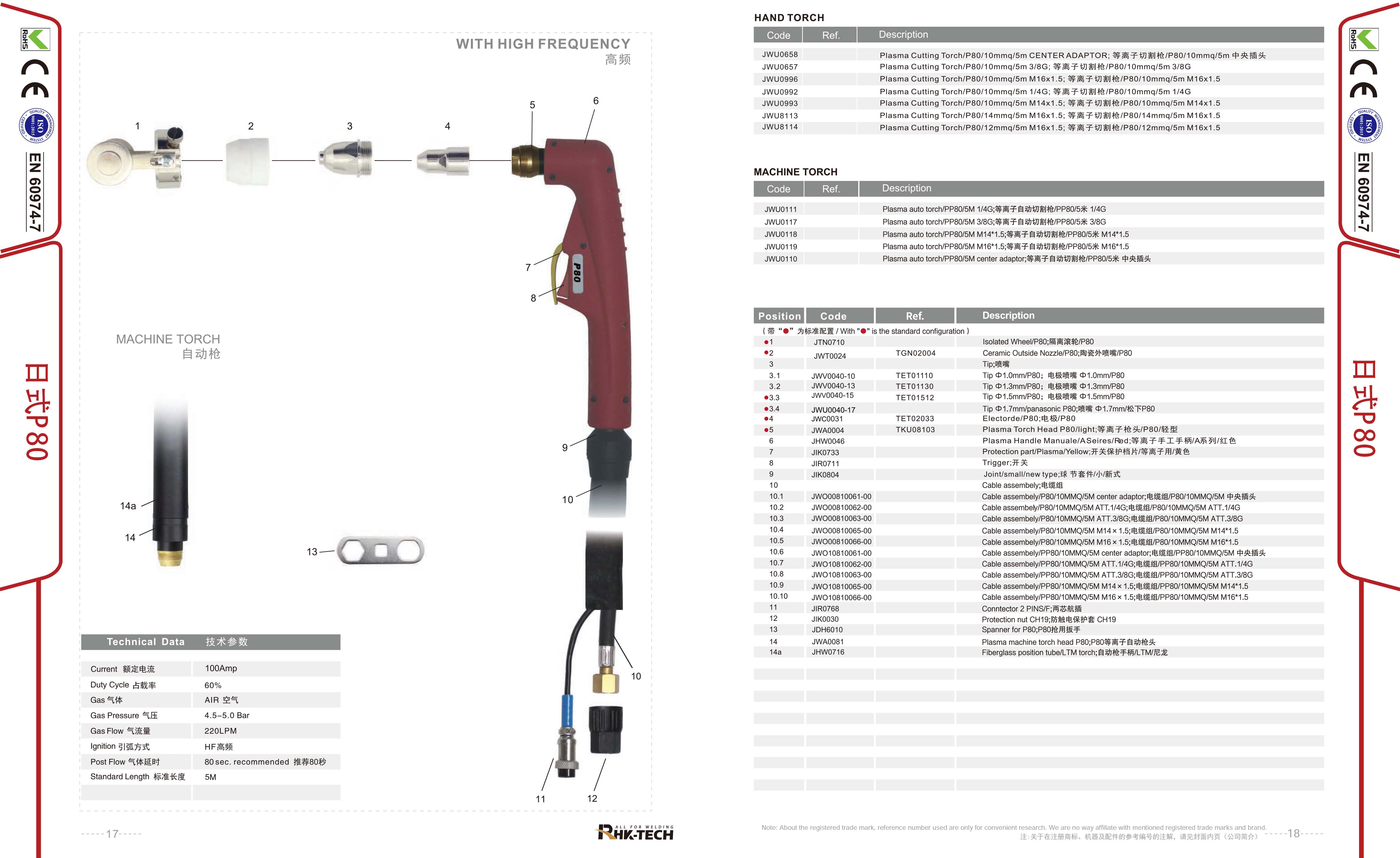

Duty Cycle

60%

Current

100Amp

Gas

Air

Gas Pressure

4.5-5.0 Bar

Gas Flow

220LPM

lgnition

HF

Post Flow

80 sec.recommended

Standard Length

5M

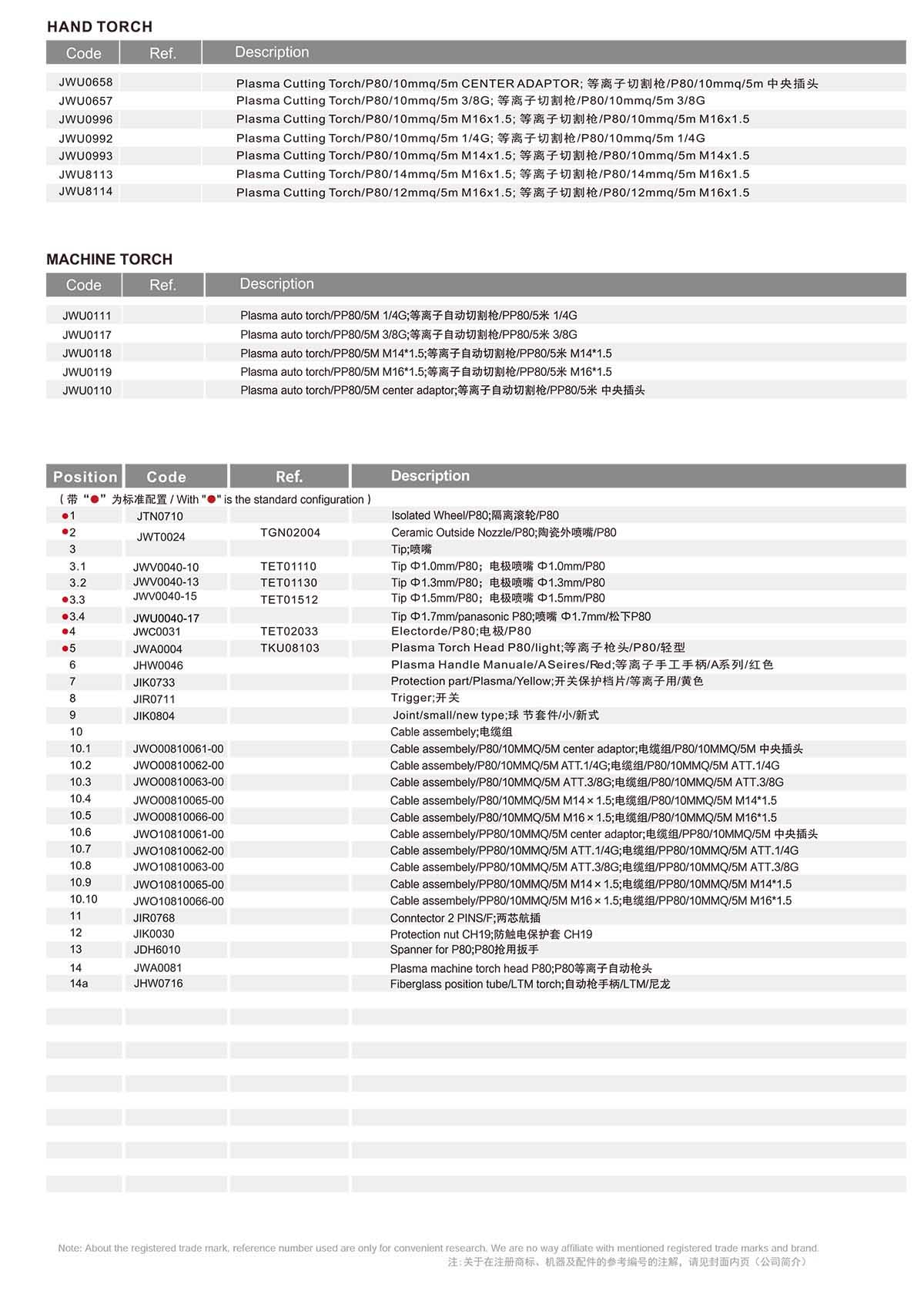

JWU0111

Plasma auto torch/PP80/5M 1/4G

JWU0117

Plasma auto torch/PP80/5M 3/8G

JWU0118

Plasma auto torch/PP80/5M M14*1.5

JWU0119

Plasma auto torch/PP80/5M M16*1.5

JWU0110

Plasma auto torch/PP80/5M center adaptor

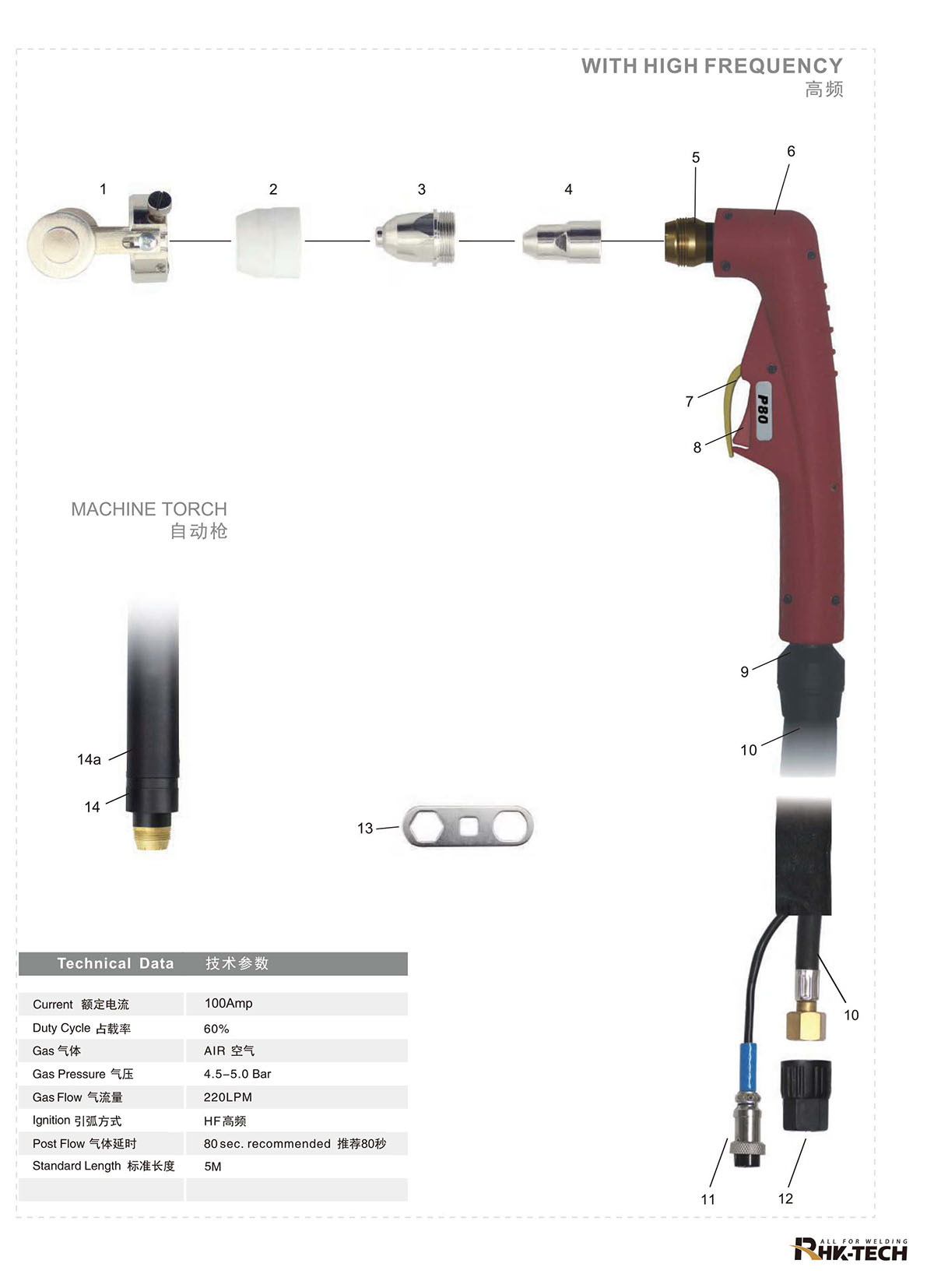

1

JTN0710

lsolated Wheel/P80

2

JWT0024

Ceramic Outside Nozzle/P80

3

Tip

3.1

JWV0040-10

TET01110

TipΦ1.0mm/P80

3.2

JWV0040-13

TipΦ1.3mm/P80

3.3

JWV0040-15

TET01512

TipΦ1.5mm/P80

3.4

TipΦ1.7mm/panasonic P80

4

JWC0031

TET02033

Electrode/P80

5

JWA0004

TKU08103

Plasma Torch Head/P80/light

6

JHW0046

Plasma Handle Manual/A Seires/Red

7

JIK0733

Protection part/Plasma/Yellow

8

Trigger

9

JIK0804

Joint/small/new type

10

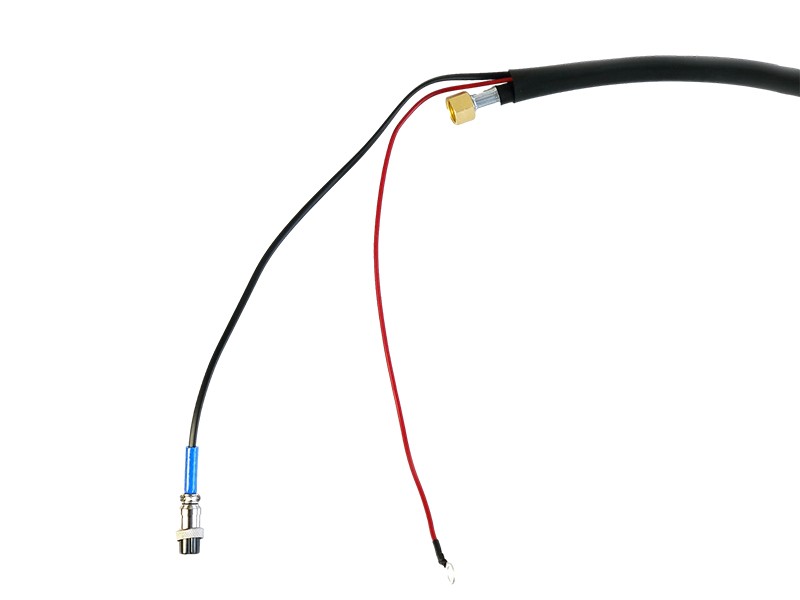

Cable assemely

10.1

JWO00810061-00

Cable asemely/P80/10MMQ/5M center adaptor

10.2

JWO00810062-00

Cable asemely/P80/10MMQ/5M ATT.1/4G

10.3

JWO00810063-00

Cable asemely/P80/10MMQ/5M ATT.3/8G

10.4

JWO00810065-00

Cable asembely/P8010MMQ/5M M14x1.5

10.5

JWO00810066-00

Cable asembely/P8010MMQ/5M M16x1.5

10.6

JWO10810061-00

Cable asembely/PP80/10MMQ/5M center adaptor

10.7

JWO10810062-00

Cable asembely/PP80/10MMQ/5M ATT.1/4G

10.8

JWO10810063-00

Cable asembely/PP80/10MMQ/5M ATT.3/8G

10.9

JWO10810065-00

Cable asembely/PP80/10MMQ/5M M14x1.5

10.10

JWO10810066-00

Cable asembely/PP80/10MMQ/5M M16x1.5

11

JIR0768

Conntector 2 Pins/F

12

Protection nut CH19

13

JDH6010

Spanner for P80

14

JWA0081

Plasma machine torch head P80

14a

JHW0716

Fiberglass position tube/LTM torch
