Duty Cycle

60%

Current

60Amp

Gas

Air

Gas Pressure

4.5-5.0 Bar

Gas Flow

160LPM

lgnition

HF

Post Flow

40 sec.recommended

Standard Length

5M

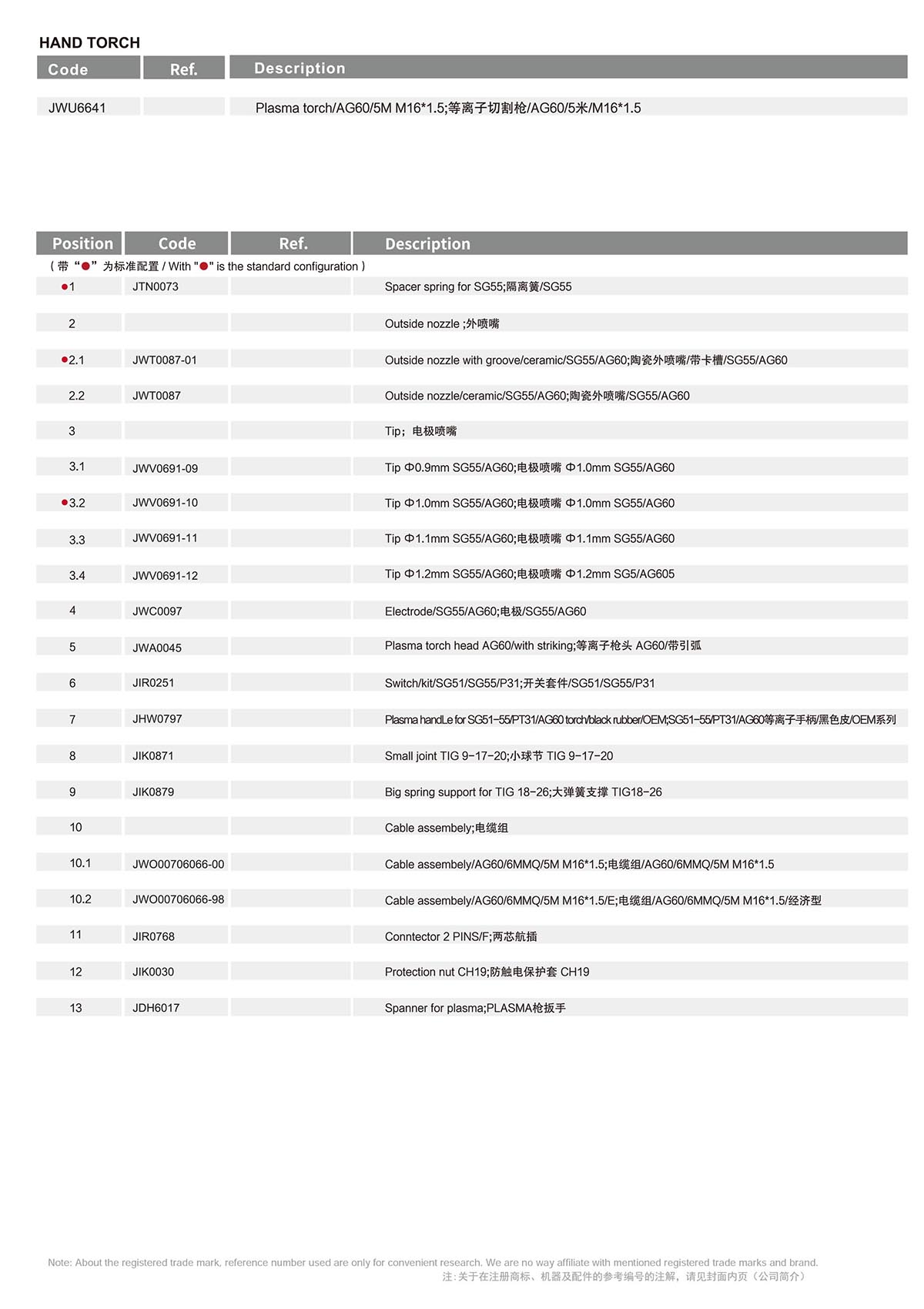

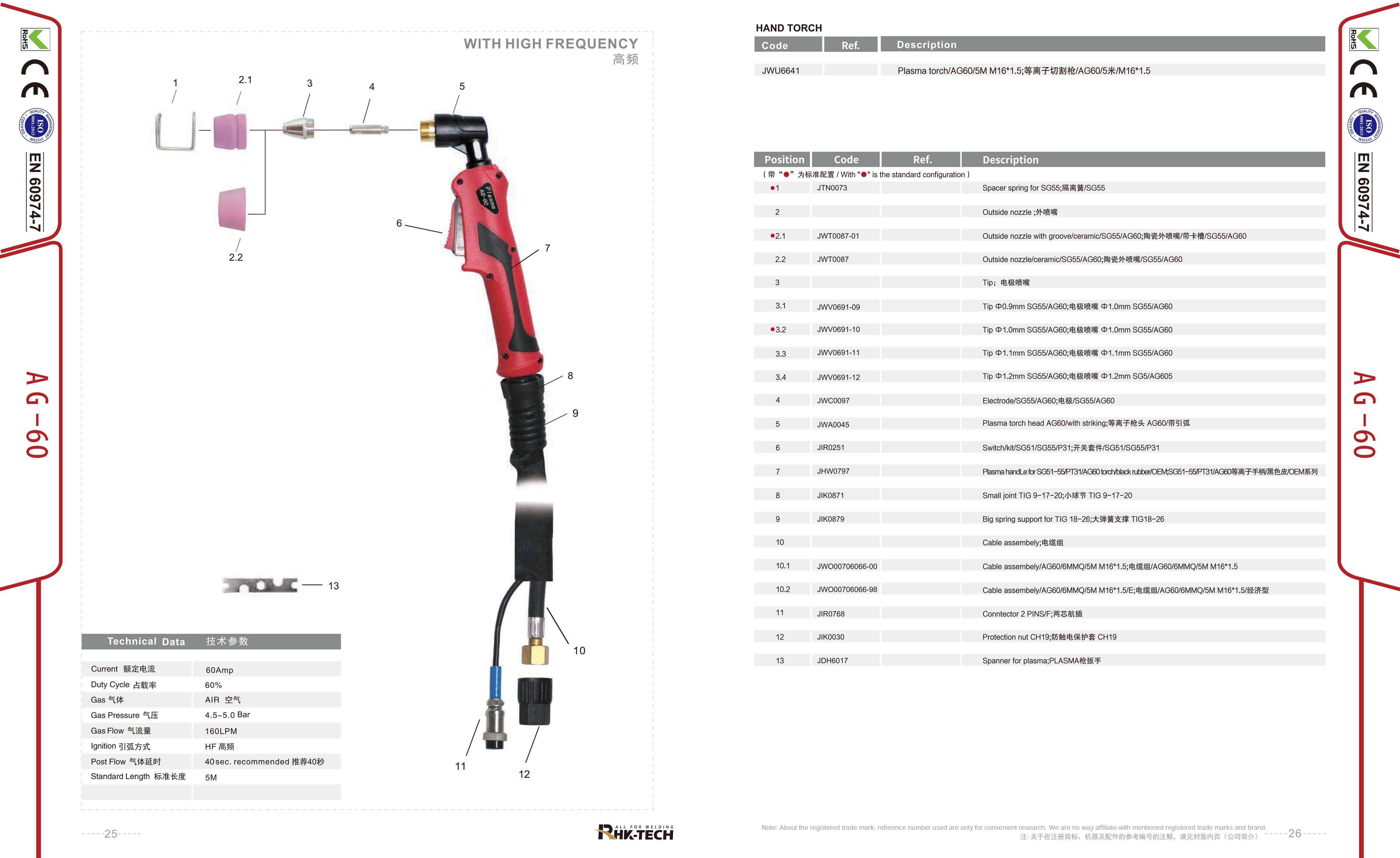

JWU 6641

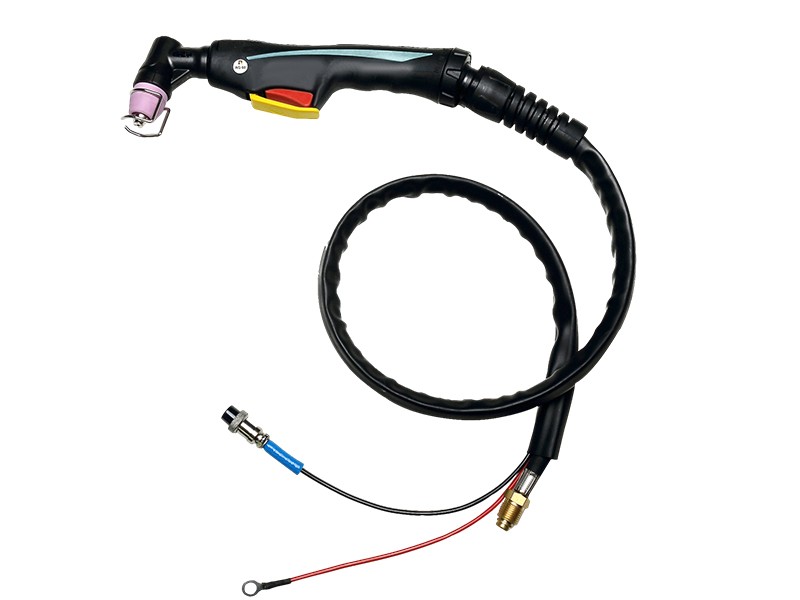

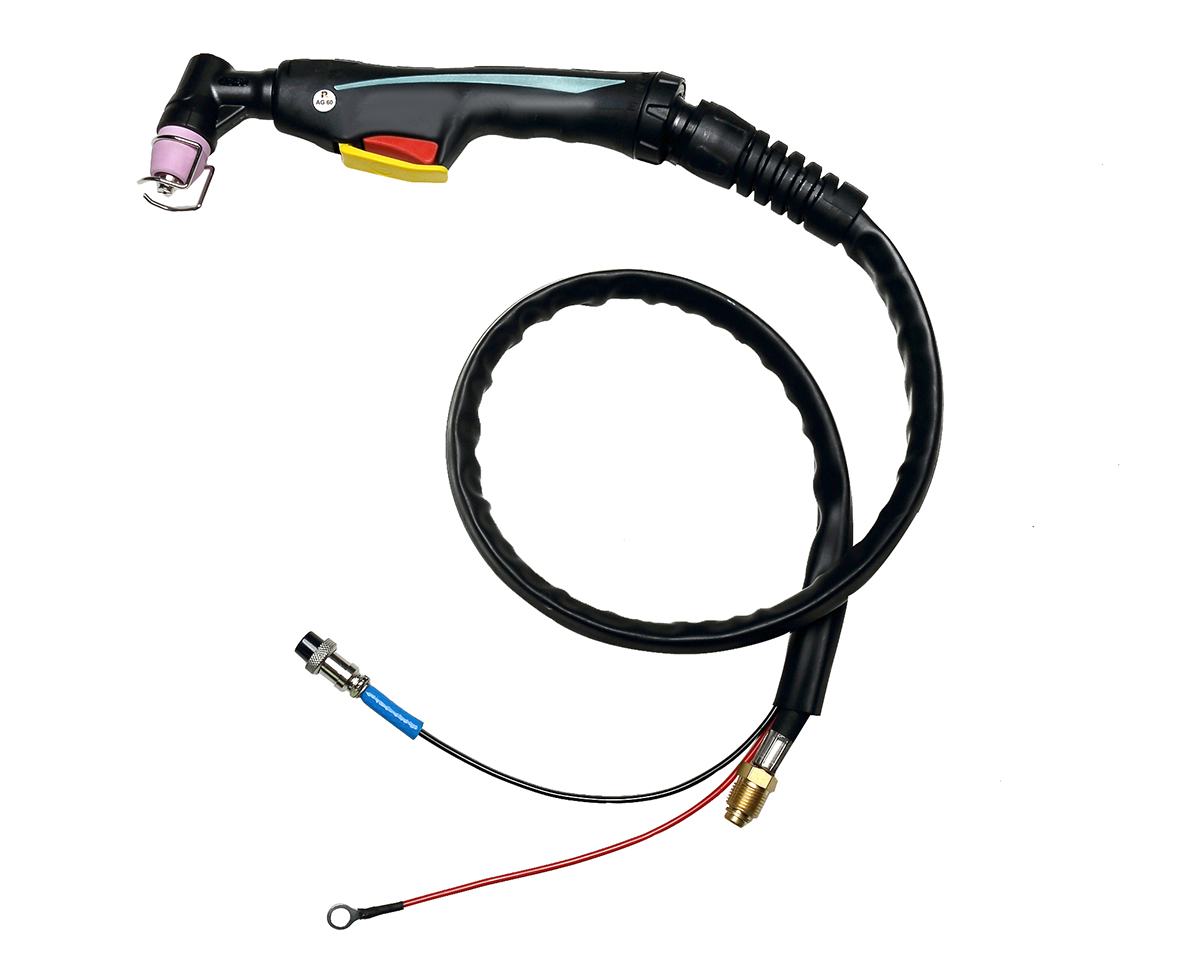

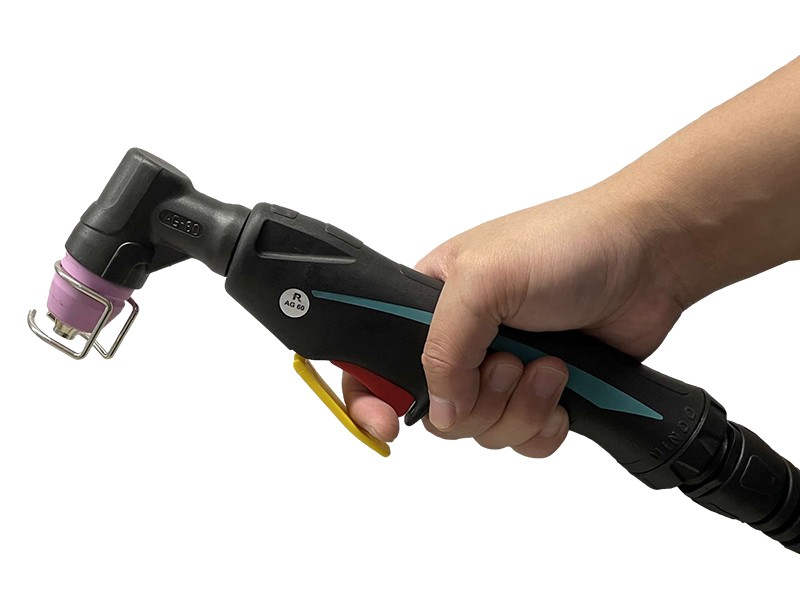

Plasma torch/AG60/5M M16*1.5;

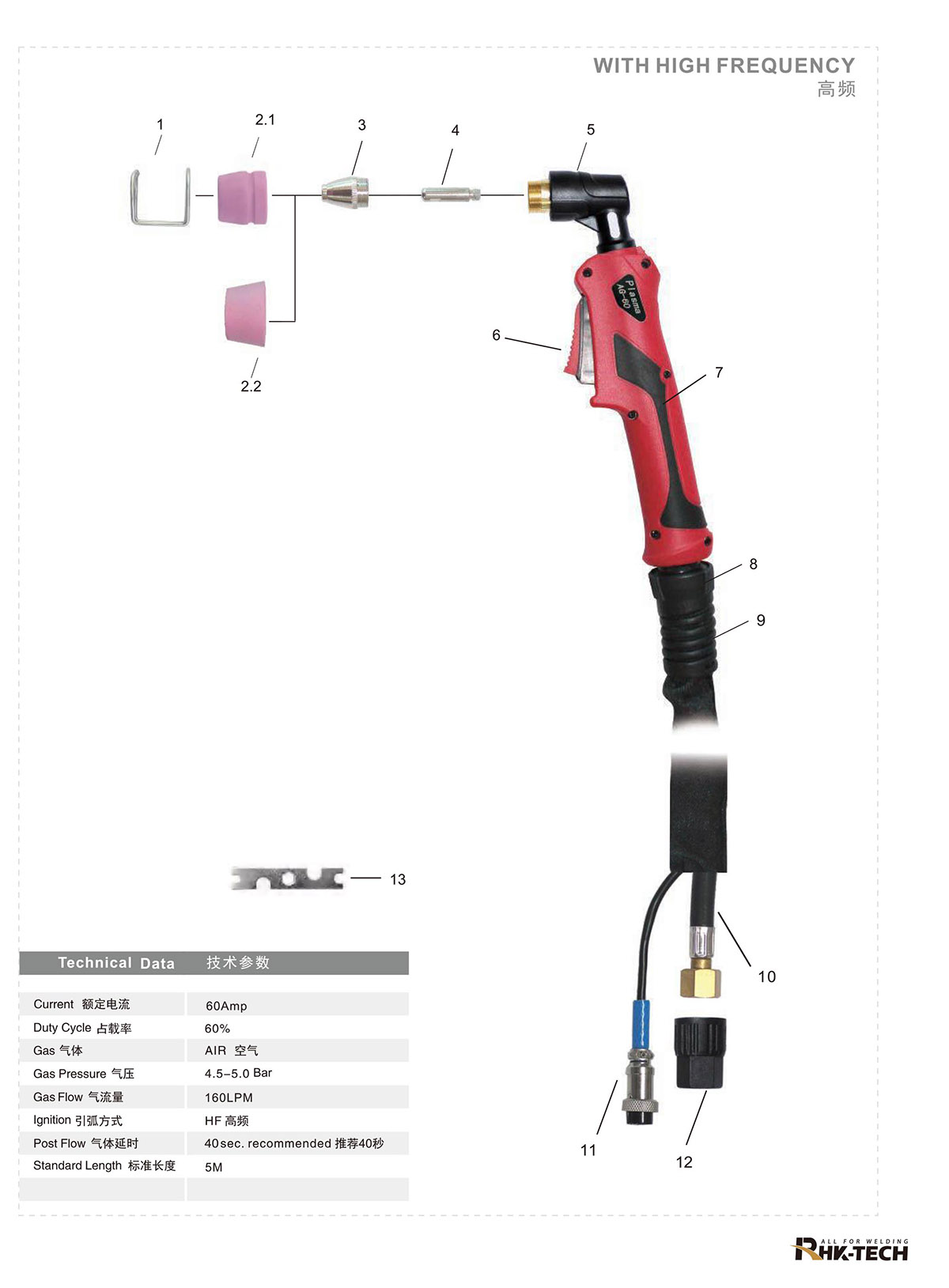

1

JTN0073

Spacer spring for SG55;

2

Outside nozzle;

2.1

Outside nozzle with groove/ceramic/SG55/AG60;

2.2

JWT0087

Outside nozzle/ceramic/SG55/AG60;

3

Tip;

3.1

JWV0691-09

Tip Φ0.9mm SG55/AG60;

3.2

Tip Φ1.0mm SG55/AG60;

3.3

JWV0691-11

Tip Φ1.1mm SG55/AG60;

3.4

JWV0691-12

Tip Φ1.2mm SG55/AG60;

4

JWC0097

Electrode/SG55/AG60;

5

JWA0045

Plasma torch head AG60/with striking;

6

Switch/kit/SG51/SG55/P31;

7

JHW0797

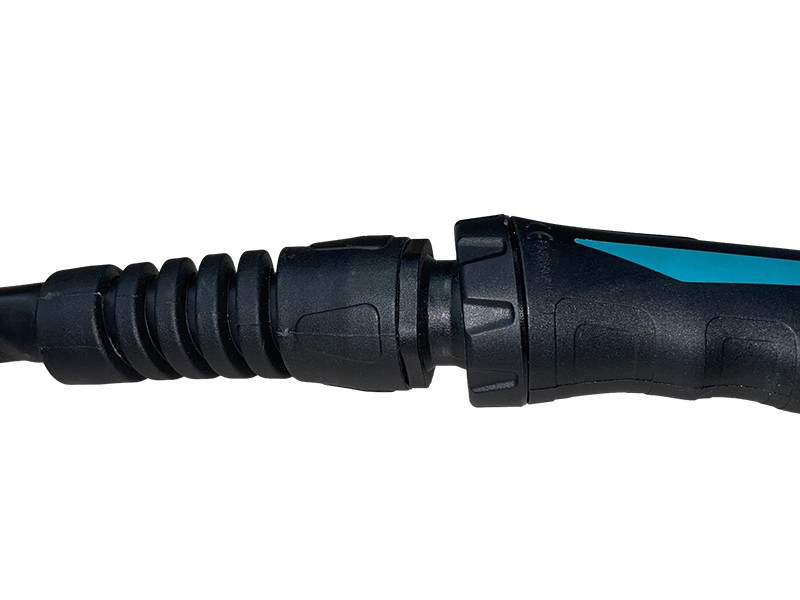

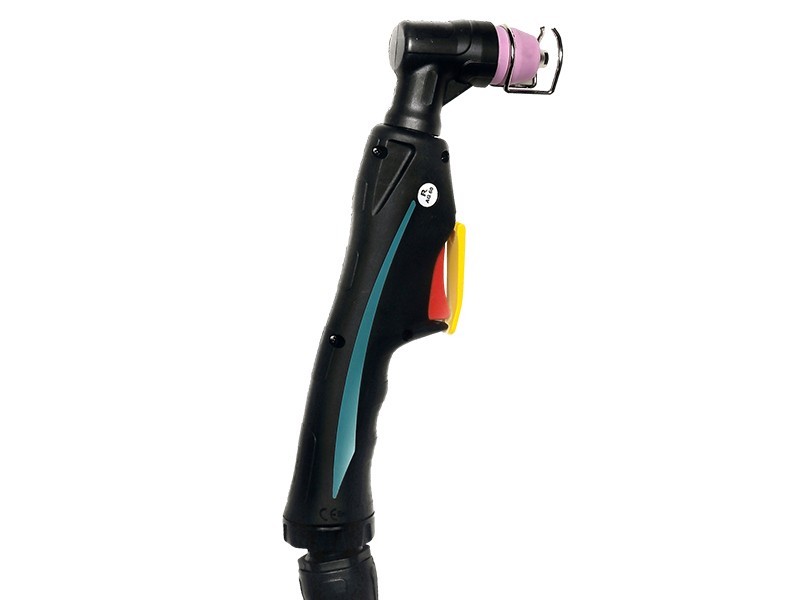

Plasma handle for SG51-55/PT31/AG60 torch/black rubber/OEM;

8

JIK0871

Small joint TIG 9-17-20;

9

JIK0879

Big spring support for TlG 18-26;

10

Cable assembely;

10.1

JwO00706066-00

Cable assembely/AG60/6MMQ/5M M16*1.5;

10.2

Cable assembely/AG60/6MMQ/5M M16*1.5/E;

11

JIR0768

Conntector 2 Pins/F;

12

JIK0030

Protection nut CH19;

13

JDH6017

Spanner for plasma;
