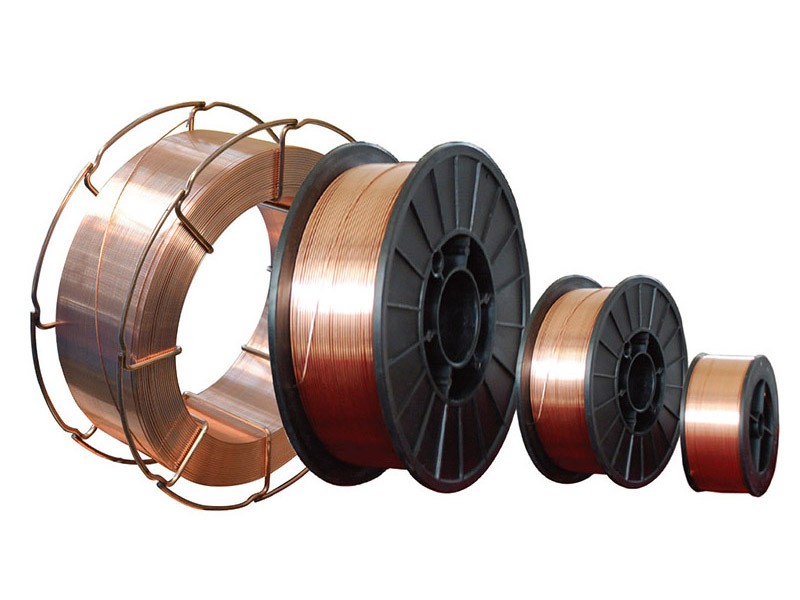

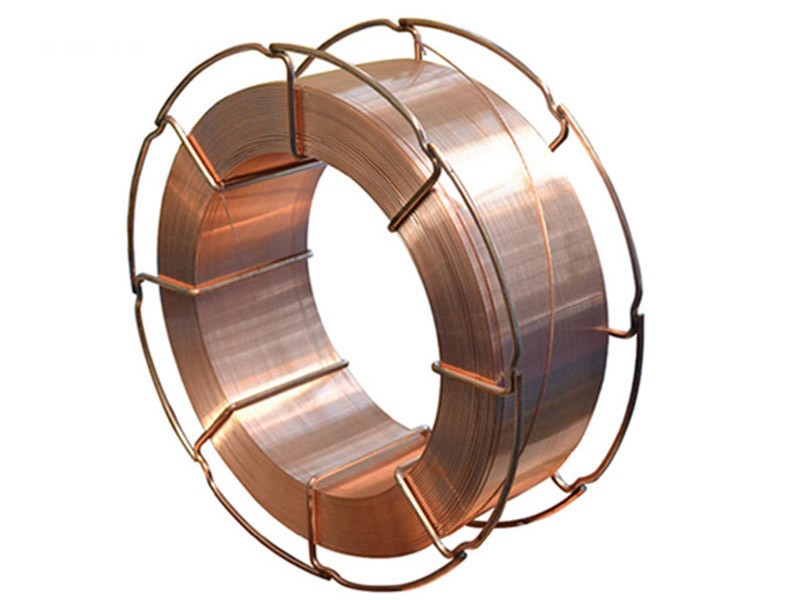

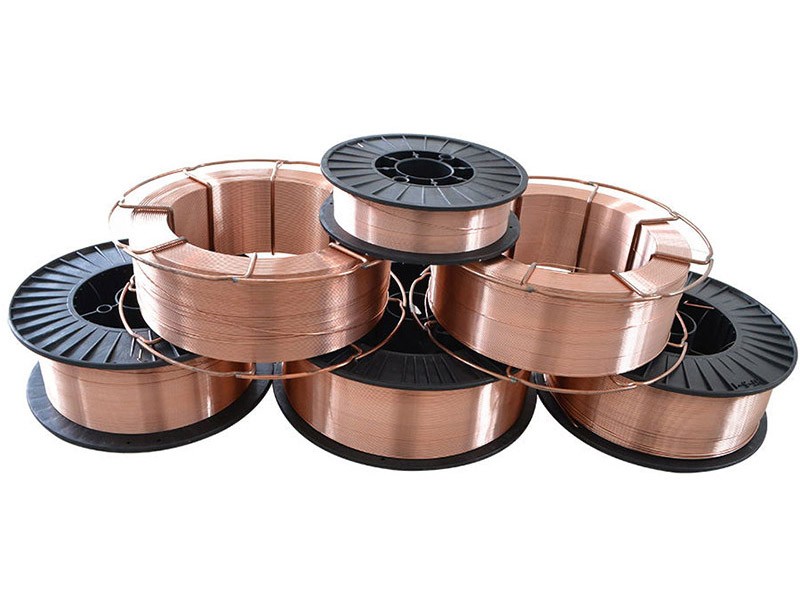

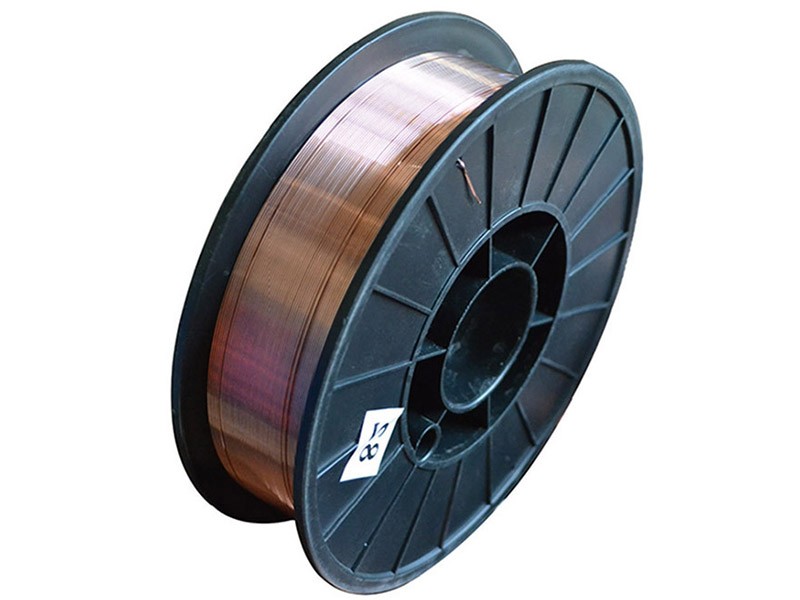

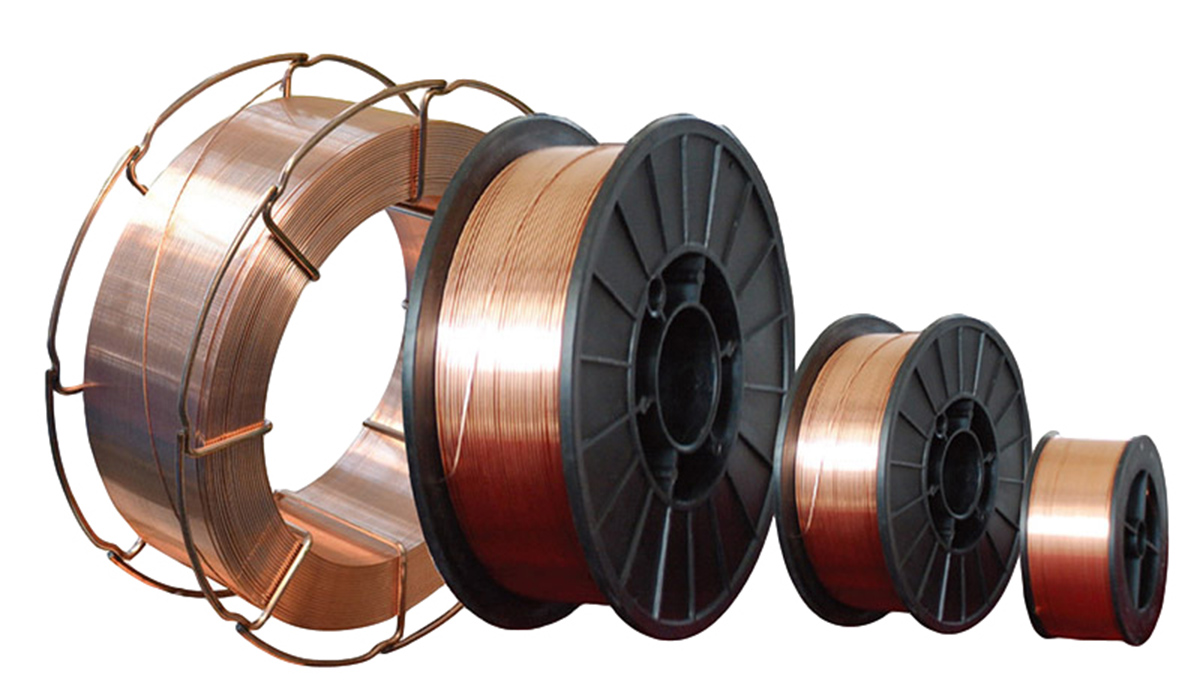

ER70S-6二氧化碳Mig焊丝
ER70S-6二氧化碳Mig焊丝
ER70S-6二氧化碳Mig焊丝
ER70S-6二氧化碳Mig焊丝
ER70S-6二氧化碳Mig焊丝
ER70S-6二氧化碳Mig焊丝
| Place of Origin | China | Brand Name | RHK |
| ER70S-6 | Diameter | 0.8~1.6MM | |
| Weight | 1KG, 5KG, 15KG, 17KG, 18KG, 20KG | Type | CO2 Mag Welding Wire |
| Product Name | Gas Protection Welding Wire | Material | Mild Steel Copper Coated |
| ISO9001 | Weight Tolerances | 0.05KG/Spool | |
| Quality | Class A | Spool Materials | Plastic or Metal Spool |
| Package | ||
| Specification | Wire Tray | Weight |
| Φ0.8~1.6mm | D100mm D200mm D270mm D300mm K300mm | 1kg, 5kg, 15kg, 17kg, 18kg, 20kg |
| Wire Chemical Composition(%) | |||||||
| C | Mn | Si | P | S | Cr | Ni | Cu |
| 0.06~0.15 | 1.40~1.85 | 0.80~1.15 | ≤0.025 | ≤0.035 | - | - | ≤0.50 |
| Diameter of Wire(mm) | Φ0.8 | Φ1.0 | Φ1.2 | Φ1.6 |
| Welding Current(A) | 40~140 | 50~220 | 80~350 | 120~450 |
| Matters needing attention: |
1. Wire into the plant must be stored in dry conditions, can not open welding wire coil waterproof packaging. 2. Welding shall be removed before welding surface oil, rust, water and other impurities. 3. The CO2 gas protection, CO2 gas purity 99.98%. 4. CO2 welding protective gas flow rate should be controlled at 20~25L/min. 5. Wire extension length should be controlled in the range of 15~25mm. |
